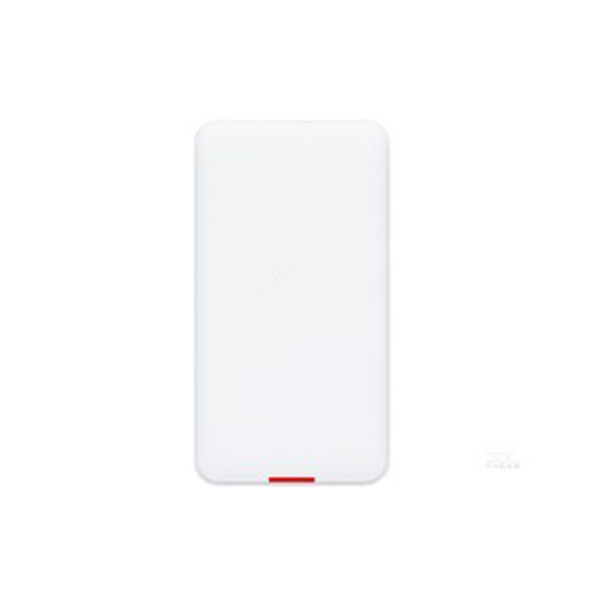

Hua wei 11ax indoor type Wi-Fi 6 wall plate access point AirEngine5761S-11W
Description
AirEngine 5761S-11W is Wi-Fi 6 wall plate access point (AP). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.
Features
-
-Uplink: 1 x GE electrical port; downlink: 4 x GE electrical port + 2 x RJ45 passthrough port
-Mounting on a junction box or wall, facilitating deployment
-Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
-USB port for IoT application extension (such as ZigBee and RFID)
-Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
-Working modes: Fit, Fat, and cloud management
Product Spectification
| Specifications | AirEngine5761S-11W |
| System memory | DDR4 1 GB |
| Flash | NAND FLASH 512 MB |
| Power input | DC: 12 V ± 10%
PoE power supply: in compliance with IEEE 802.3at/802.3af |
| Maximum power consumption | 12.7 W (without USB) |
| Antenna gain | WLAN 2.4 GHz radio: 2.5 dBi
WLAN 5 GHz radio: 3 dBi
Bluetooth 2.4 GHz: 4 dBi |
| Maximum number of users | ≤ 512 for each radio When functioning as a leader AP, the AirEngine 5761S-11W can manage a maximum of 1152 users. |
Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight. We send the
samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from
our company or send us the samples charge together with the courier cost.
Q: How much the Courier freight will be for the samples?
A: Courier freight depends on weight and carton size, destinations and other relating factors.
Q: How can I get your price list?
A: Please leave your contact way such as Email/Whatsapp/Skype/Trademanager to us. We will contact you and pass our quotation
sheet to you as soon as possible.
Q:When can I get the price?
A: We usually quote within 8 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.
